Description

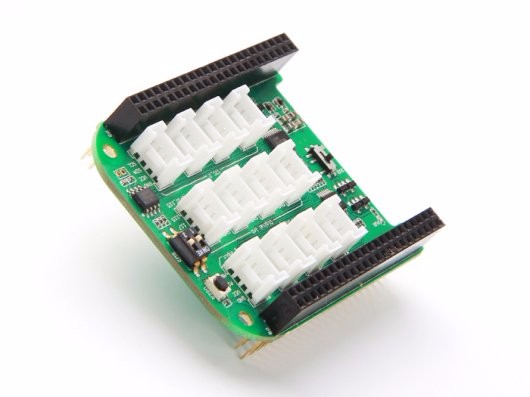

One of the best things about Beaglebone Board is the massive accessible GPIOs coming out from its 2x 46 pin headers. However, as we know, all things has two sides – the good side and the bad side. 2×46 pins means 2×46 jumper wires, and 2×46 jumper wires putting on the board means – A REAL MESS. How can a rapid prototyping be called ‘rapid’ if you spend most of your time dealing with entangled wires? Now this Grove Base Cape for Beaglebone v2.0 is designed for real rapid prototyping with your Beaglebone board.

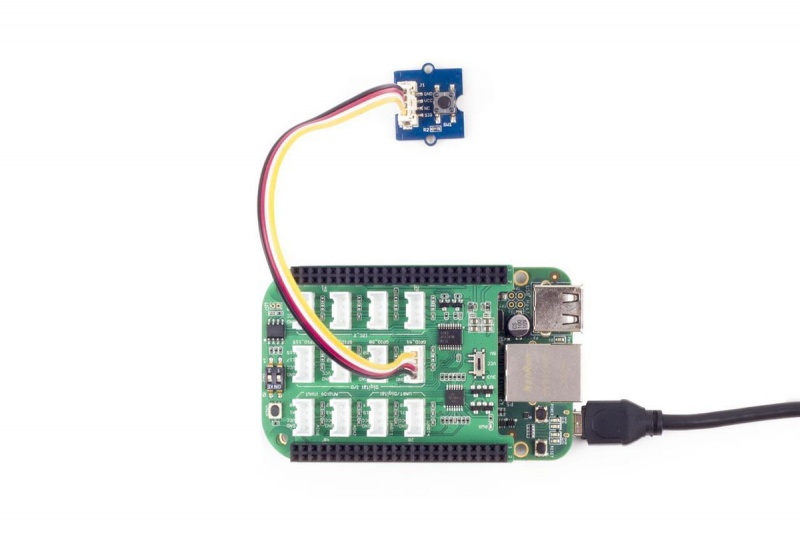

The cape has brought the simplicity of Grove system to your Beaglebone projects, just attach it directly onto your Beaglebone v2.0, and then you can have 12 easy-to-use Grove connectors to do plug-and-play with the big family of Grove modules. The connectors include 2x UART, 2x ADC, 4x Digital I/O and 4x I2C that interface to the pins on your Beaglebone board, offering almost everything you need. There are two switches used to reset the I2C address in case of address conflicts. The board also integrates a switch for voltage transition – from a normal 5V to 3.3V.
Specification
- 12 Grove Connectors includes
- 2x UART
- 2x Analog Input
- 4x Digital I/O
- 4x I2C Interface
Part List
- 1 x Grove Base Cape for Beaglebone v2.0
Documents
- For libraries and documents, please visit our Wiki page.
- For technical discussion, please come to our Forum.
- For projects that you would like to share with the community, please visit Recipe.
Grove Base Cape for BeagleBone v2 is a Grove system expansion board for BeagleBone platform. This cape makes it convenient to connect many transducers (sensors and actuators) available as Grove modules with BeagleBone platform. The boards also includes a 256kb Serial EEPROM. It will save a lot effort for you in product development process with soldering-free design and compact plug-and-play ports.
The cape provides 12 easy-to-use Grove connectors to do plug-and-play with the big family of Grove modules. The connectors include 2x UART, 2x ADC, 4x Digital I/O and 4x I2C that interface to the pins on your Beaglebone board, offering almost everything you need. There are two switches used to reset the I2C address in case of address conflicts. The board also integrates a switch for voltage transition – from a normal 5V to 3.3V and vice versa.
Contents
|
Features
- Easier connection between your BeagleBone and Grove Modules.
- Soldering-free
- Saves your time and money
Specifications
Output voltage | 3.3 V or 5 V(switchable) |
Maximum output current | 500 mA at 3.3V, 500 mA at 5V |
Digital Grove Ports | 6 , share same pins with UART1(labeled) and UART4(labeled) |
Analog Grove Ports | 2 |
I2C Grove Ports | 4 |
UART Grove Ports | 2 (UART1, UART4) |
EEPROM | 256kb (Model: CAT24C256WI) |
Dimensions | 70 mm(Length) × 50 mm(width) |
Parts list
Parts name | Quantity |
---|---|
Grove Base Cape for BeagleBone v2 | 1 PCS |

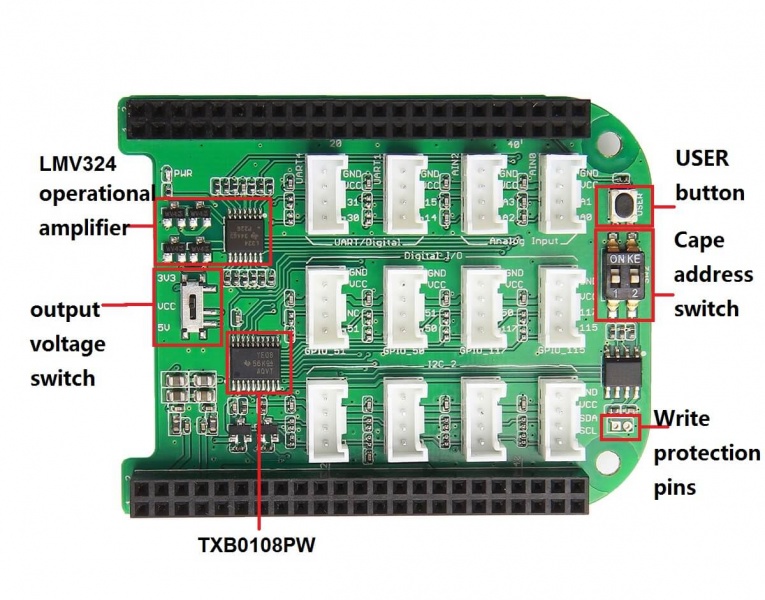

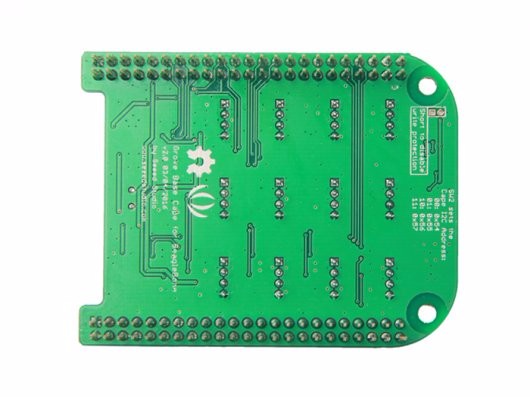

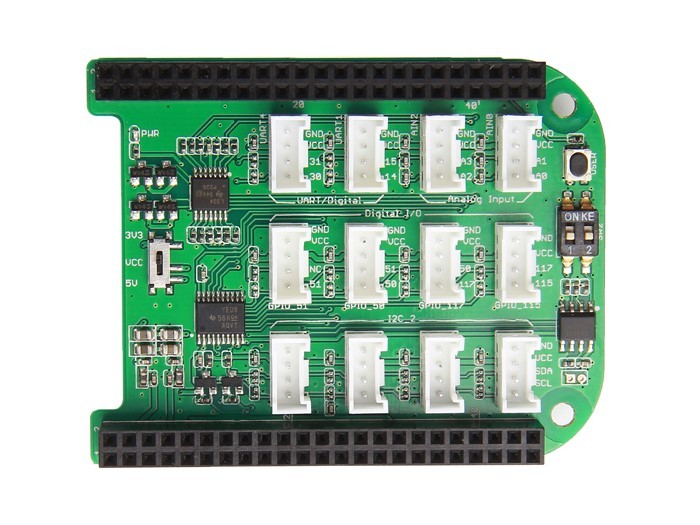

Hardware overview
