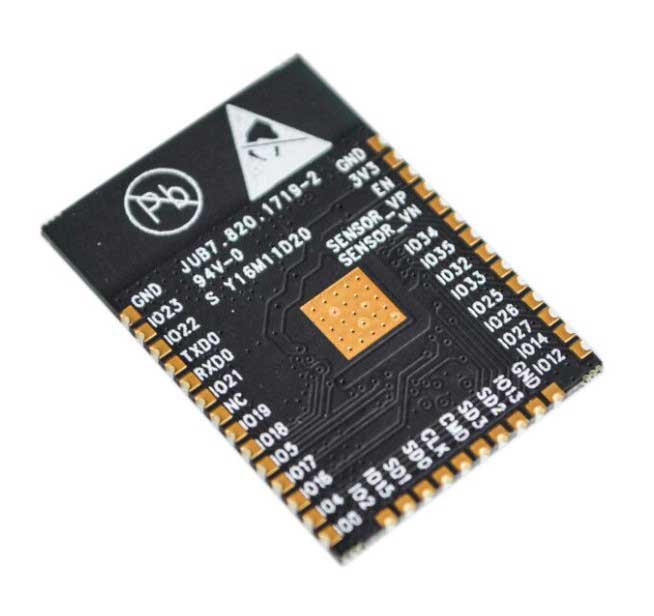

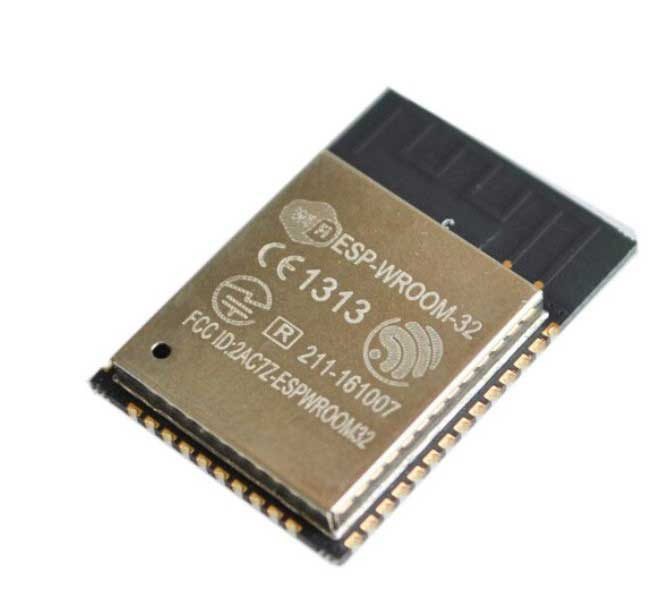

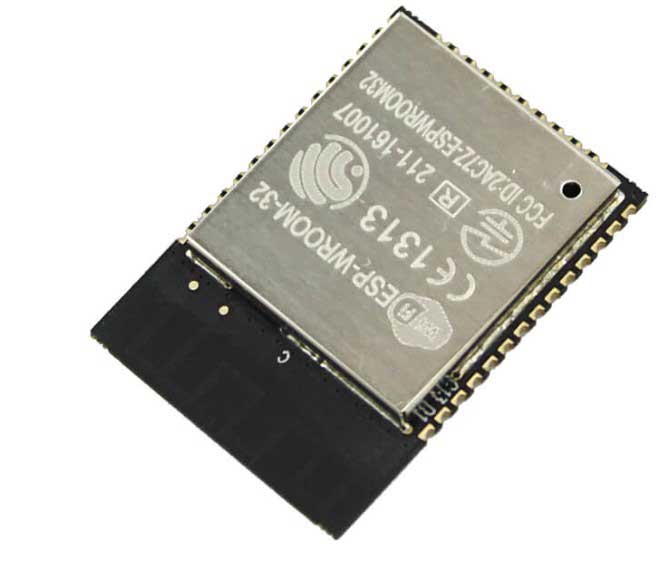

ESP-WROOM-32 ESP32 ESP-32 Bluetooth and WIFI Dual Core CPU with Low Power Consumption
ESP-WROOM-32 is Powered by Espressif’s most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution tailored to advanced IoT applications.
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
Integrated 520 KB SRAM
Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
16 MByte flash
2.2V to 3.6V operating voltage
-40°C to +125°C operating temperature
On-board PCB antenna / IPEX connector for external antenna
Supports sniffer, station, softAP and Wi-Fi direct modes
Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b
Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Minimum receiver sensitivity of -98 dBm
135 Mbps UDP sustained throughput
2.5 µA deep sleep current
ESP-WROOM-32 is a powerful universal WiFi-BT-BLE MCU module for a variety of applications, from low-power sensor networks to the most demanding tasks such as voice coding, music streaming and MP3 decoding. ESP8266 bringing WiFi to a small and cheap package, but also has enough processing power and enough pins to complete the small things and began a small revolution. Now you can use the ESP-WROOM-32 WiFi / Bluetooth Classic / BLE module to elevate your WiFi capabilities to a higher level! The product is just a module – it could be hard to use. You need to solder it on a board with support circuit (see Espressif’s assembled ESP32 development board for a more complete design). This module is currently available for use by developers, FCC, CE, IC, MIC (Telec), KCC and NCC certifications. This module ESP-wroom-32 totally fits for WiFi 802.11b/g/n/e/i and Bluetooth v4.2 BR/EDR & BLE standard, and providing a series of solutions of Wifi and Bluetooth to support open real-time operating systems (RTOS). it also offers an open platform to support users to custom function flexibly in various applications.
Shipping list:1PCS* ESP-WROOM-32 (ESP32 WiFi-BT-BLE MCU Module)
