Crowtail- Relay
397,500 تومان
Relay
| وزن | 10 گرم |
|---|
موجود
شناسه محصول:
ELEC0023
دسته: Crowtail, رباتیک, رله و سوئیچ, موتور و گیربکس
توضیحات

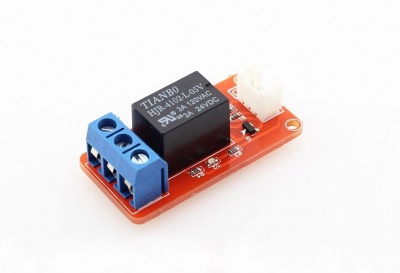

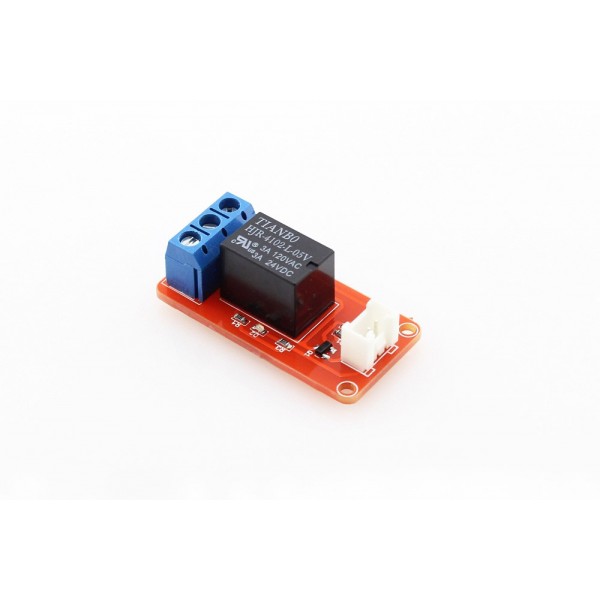

The Relay is the most common used module in actually application such as home automation, and sometimes you need to control large current such as the air conditioning/water heater. That is what this Large Current Relay Module can be help.
This Large Current Relay Module is a high quality Single Pole Souble Throw Relay(SPST). When the relay not triggered, the 2 outputs is disconnected; when the relay triggered(Logic Low), the 2 outputs connected, the max current can be up to 30A@240VAC or 30A@30VDC, which would be enough for most of the home appliances.
Specification
- Control Voltage: 5V
- Nominal Current: 185mA
Part List
- 1 X Crowtail- Relay
- 1 X Crowtail 3 Pin Cable
Wiki & External links

Features
- High Switching Current
Specification
| Parameter | Description |
|---|---|
| Operating Voltage | 5V |
| Operating Current | 90mA |
| Relay Life | 100,000 Cycle |
| Max Switching Voltage | 120VAC/24VDC |
| Max Switching Current | 3A |
Usage

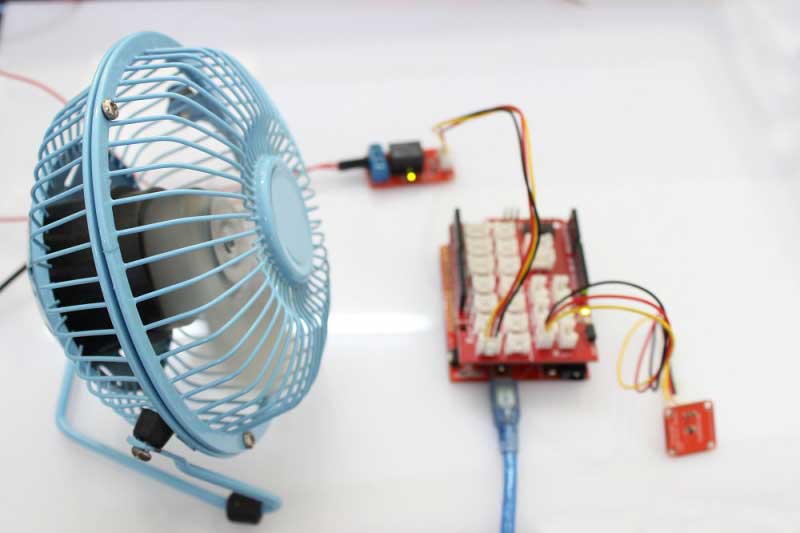

Intelligent Temperature Control Fan

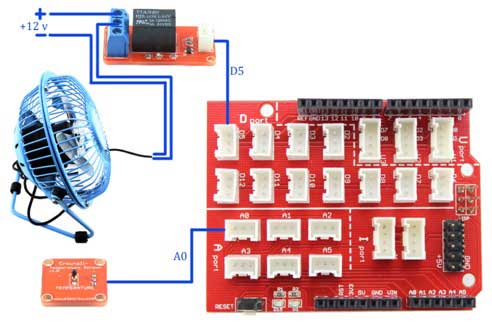

1.Hardware Connection

2.Copy the demo code to your sketch, then upload to Arduino or Crowduino board.You can set a threshold temperature value to control the realy ON or OFF, then control the fan work or not.
/*
Temperature sensor connect to AO
Relay connetct to D5
*/
#include <math.h>
int a;
float temperature;
int B=3975; //B value of the thermistor
float resistance;
// Connect the Relay to digital pin D5.
// give it a name:
int Relay = 5;
void setup()
{
// initialize the digital pin as an output.
pinMode(Relay, OUTPUT);
Serial.begin(9600);
}
void loop()
{
a=analogRead(0);
resistance=(float)(1023-a)*10000/a; //get the resistance of the sensor;
temperature=1/(log(resistance/10000)/B+1/298.15)-273.15;//convert to temperature via datasheet ;
delay(1000);
Serial.print("Current temperature is ");
Serial.println(temperature);
if(temperature>20)
{
digitalWrite(Relay, HIGH); //if temperature >20 degree,turn the Relay on,fan working
}
else
{
digitalWrite(Relay, LOW);//if temperature <=20 degree,turn the Relay off,fan not working
}
}

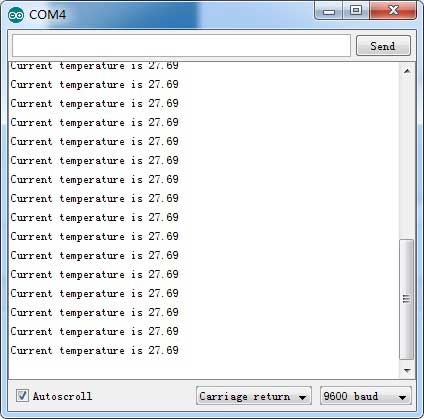

3.When the temperature above 20 degrees,the fan will working.

Resource
