Linear Potentiometer

وزن10 گرم

موجود

توضیحات

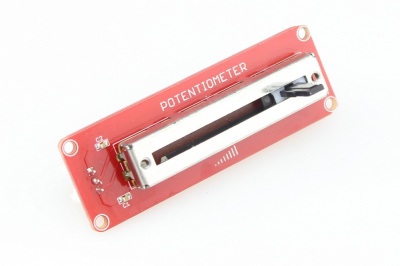

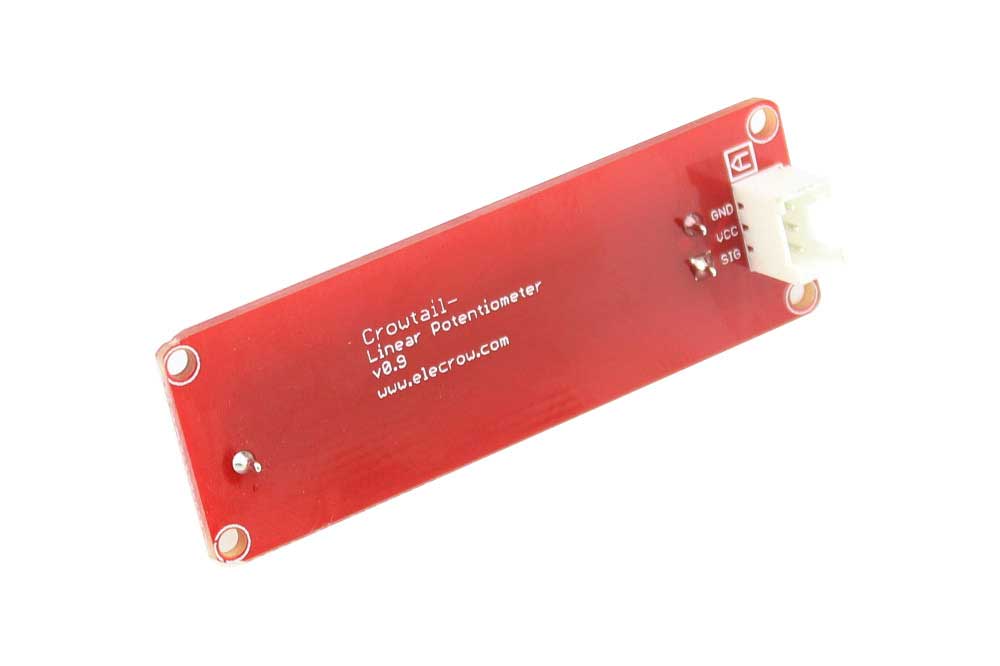

   The Crowtail- Linear Potentiometer module uses a linear variable resistor with a maximum resistance of 10KΩ. When you move the slider from one side to the other, its output voltage will range from 0 V to the Vcc you applied. The panel mount design makes this module easy to be installed in projects.

Features

  • Connection Mode:A(Analog)
  • 30mm long slide length
  • Linear resistance taper

Package list

  • Crowtail- Linear Potentiometer x1

Wiki & External links

Feature

  • 30 mm long slide length
  • Linear resistance taper
  • Connection Mode:A(Analog)

Specification

ItemMinTypicalMaxUnit
Voltage3.55.030V
Current––30mA
Dimension20 x 60mm
Net Weight8.3g
Rotational life>15000cycles
Total resistance10KΩ
Stroke length30mm
Total resistance tolerance+/- 20%/

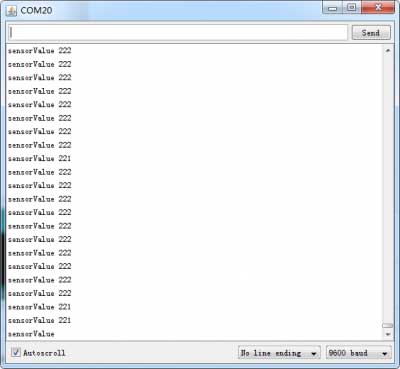

int sensorpin=A0;
int sensorValue=0;
void setup()
{
   Serial.begin(9600);
}
void loop()
{
  sensorValue = analogRead(sensorpin);
  Serial.print("sensorValue ");
  Serial.println(sensorValue);
}
