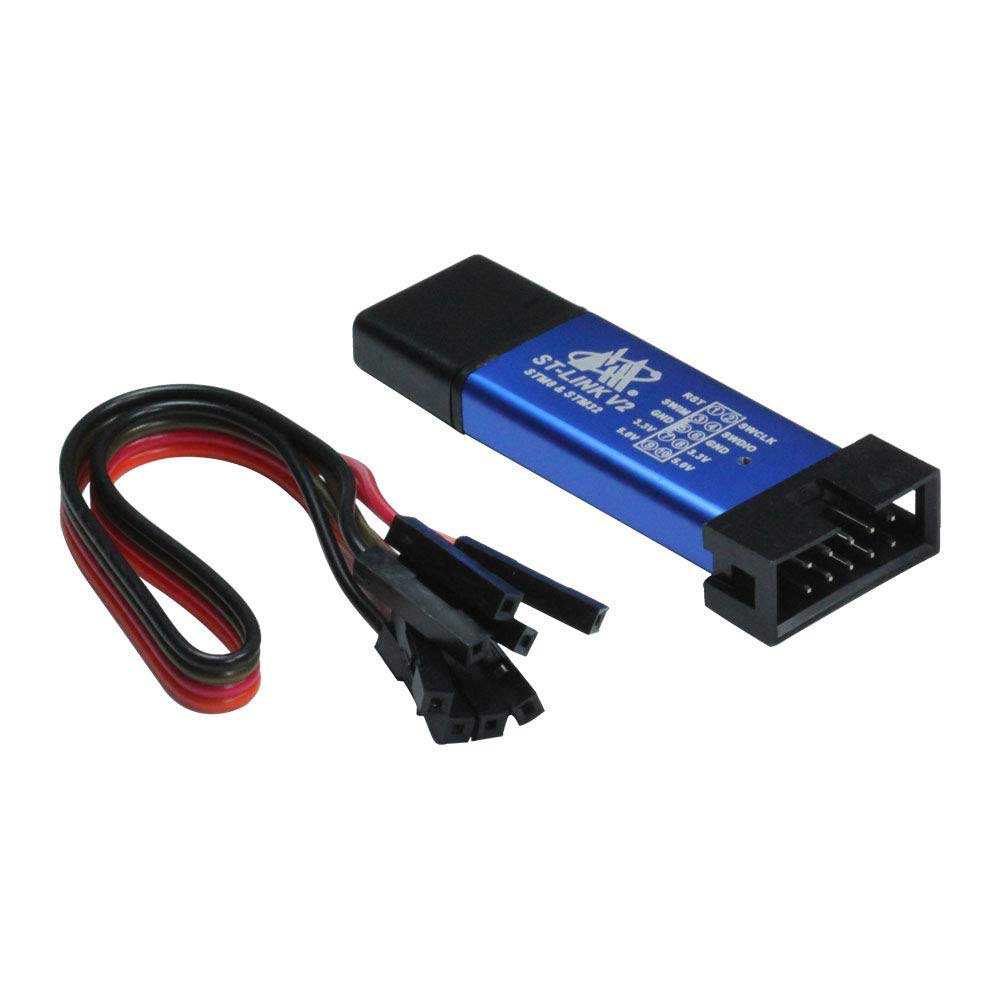

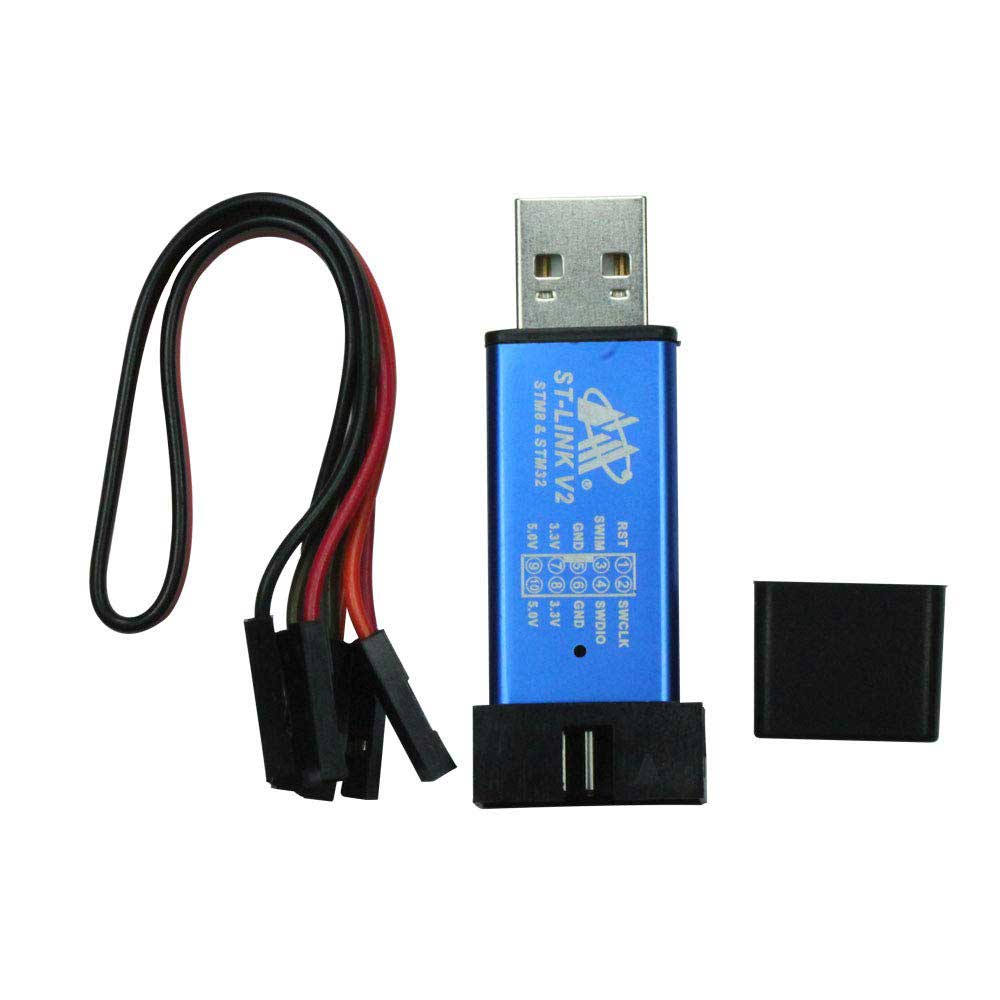

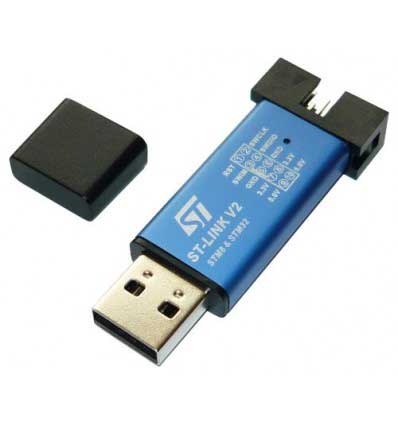

Automatic Upgrade LINK-ST V2 STM8 / STM32 Emulator Programming Downloader Debugger
Features and Benefits:
1, support a full range of STM32 SWD interface debugging, 4-wire interface is simple (including power), fast, stable; interface definition shell directly marked! No need to read the manual!
2, support a full range of STM8 SWIM download debugging (commonly used development environment such as IAR, STVD, etc. are supported); supported software versions are as follows:
1 LINK ST Utility 2.0 and above 2 STVD 4.2.1 and above
3 STVP 3.2.3 and above 4 IAR EWARM V6.20 and above
5 IAR EWSTM8 V1.30 and above 6 KEIL RVMDK V4.21 and above
3, support firmware automatic upgrade, the factory firmware has been upgraded to the latest V2.J17.S4;
4, increase the 5V power output, the output I / O port are protected, not afraid of operational errors caused by LINK ST V2 damage!
5, the interface using pure copper 2.54 pitch simple horn seat, with 20CM DuPont line, you can respond to different target board line sequence, flexible wiring;
6, the use of U disk aluminum alloy shell to protect the motherboard, easy to carry, not afraid of static electricity, not afraid of falling fall touch.
