Descripion :

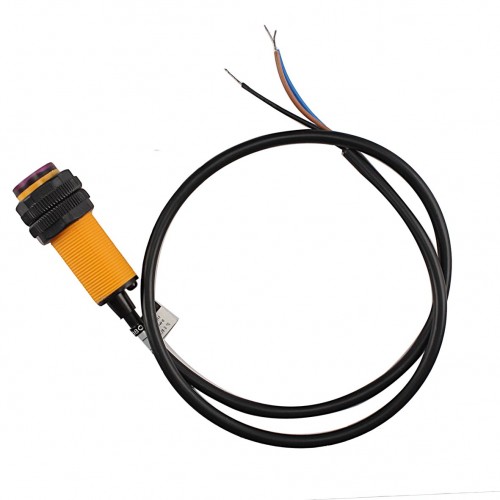

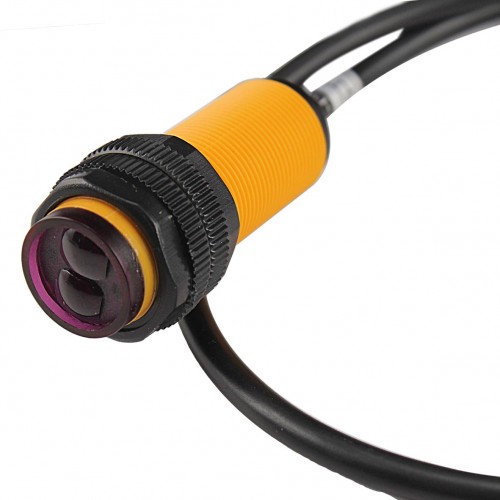

This is a set of transmitter and receiver in one of the photoelectric sensors. Detection distance can be adjusted according to the requirements. The sensor has a detection distance, by small visible light interference, cheap, easy to assemble, easy to use features, can be widely used in robot obstacle avoidance, line piecework and many other automation products.
Features:
1, the output current DC / SCR / Relay Control output: 100mA / 5V power supply
2, the current consumption of the DC <25mA
3, response time <2ms
4, point angle: ≤15 °, effective distance 3-80CM adjustable
5, detect objects: a transparent or opaque body
6, the working environment temperature: -25 deg.] C ~ + 55 deg.] C
7, the standard sensing object: sunlight 10000LX less incandescent 3000LX the following
8, case material: plastic
Applications:
1:to detect or count object (transparent or opaque).
2:by robot car to detect obstacle and then avoid it.
3:as a photoelectric switch.
Pins:
Brown:VCC
Blue:GND
Black:Signal
