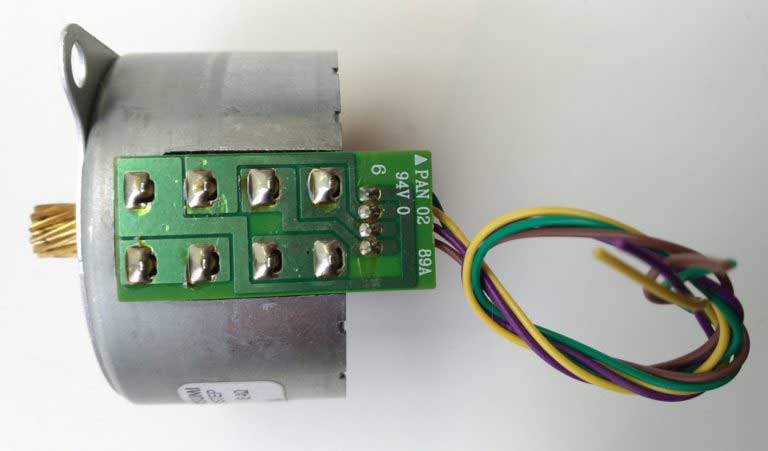

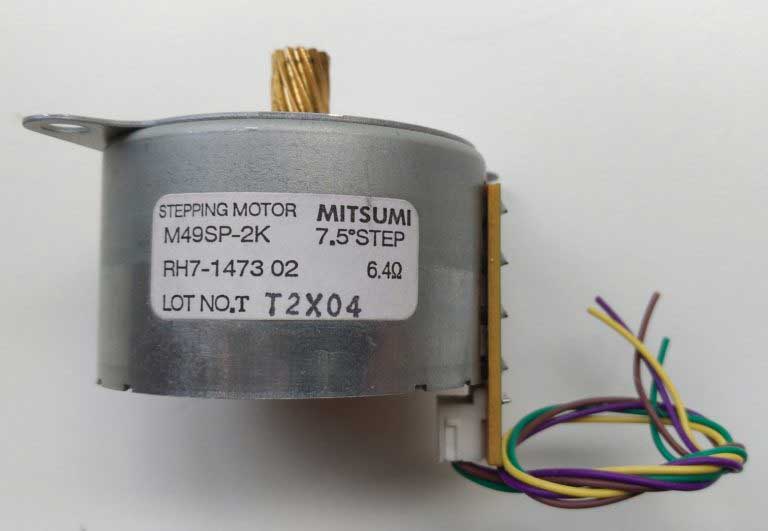

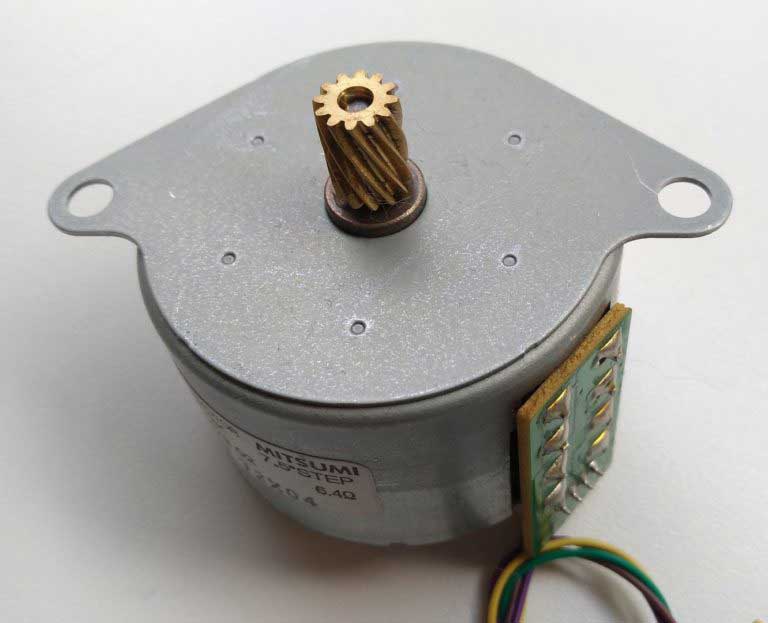

Stepmotor – Mitsumi M49SP-2K
بدون کابل اتصال
| Rated Voltage | DC 24V |
|---|---|
| Working Voltage | DC 21.6~26.4V |
| Rated Current/Phase | 1A(PEAK) |
| Coil DC Resistance | 5.8Ω/phase±10% |
| Step Angle | 7.5º/step |
| Drive Method | Constant Current |
| Excitation Method | 2-2 Phase excitation(Bipolar driving) |
| Insulation Class | Class E insulation |
| Holding Torque | 143mN·m |
| Pull-out Torque | 106mN·m / 1,000pps |
| Pull-in Torque | 124mN·m / 200pps |
| Max. Pull-out Pulse Rate | 1,900pps |
| Max. Pull-in Pulse Rate | 370pps |
