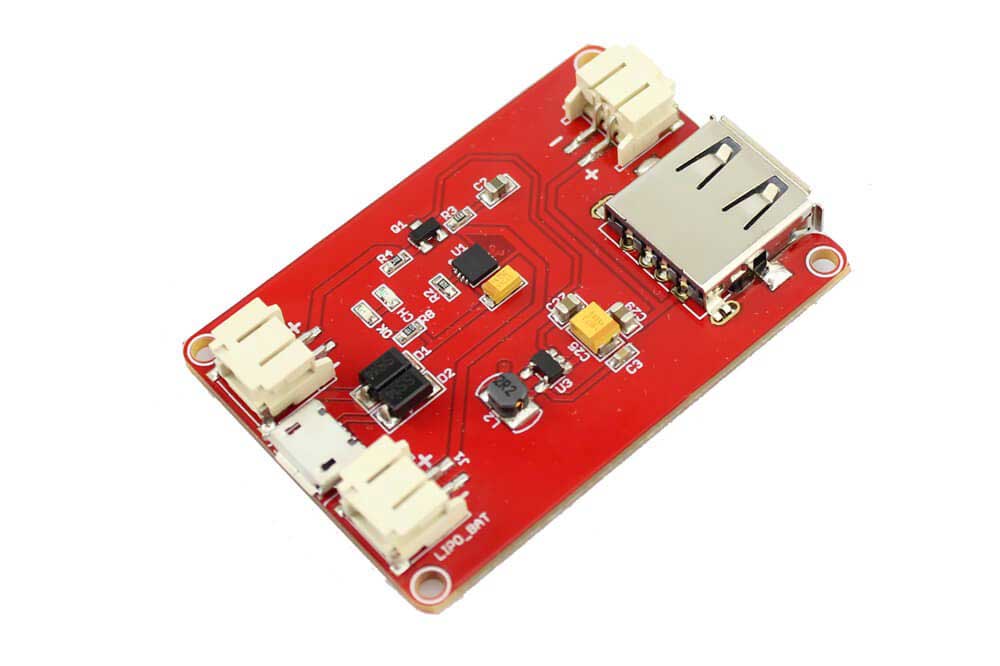

شارژر باتری با امکان اتصال پانل خورشیدی Mini solar Lipo Charger

1,011,000 تومان

شارژر باتری با امکان اتصال پانل خورشیدی

وزن9 گرم
ابعاد4 × 3 × 2 سانتیمتر

موجود در انبار

مقایسه
فهرست علاقه مندی ها
شناسه محصول: CPC09141S دسته: , ,
توضیحات

The solar/LiPo Charger is extremely affordable and easy to use. No programming is required. Plug it in and it works. The internal charger IC handles all the power flow between the various components. In case solar power is not sufficient, the microUSB port allows you to charge your lithium battery through USB. It can also be used to program your kit without detaching the LiPo Charger board.

The solar/LiPo Charger board will Show red LED to alarm when the battery is low power, or it will show Green. The LiPo Charger board is the ideal green power solution for your outdoor sensor design. Attach the LiPo Charger board to your sensor board and it can run on solar power forever!

It can be used to charge mobile phone.In addition, it also provide JST2.0 plug power output, It can provide 5V power for other peripherals.

  • Maximum 1A load output
  • Battery and Solar panel connector is JST 2.0
  • The output ports are USB and JST2.0
  • Stable 5V USB power supply regardless of source
  • Charge/Recharge algorithms built into chip
  • Charge Lithium Polymer Battery through solar power or USB
  • Stable supply voltage through either lithium battery or USB
  • One red alarm LED and one green status LED
  • Input voltage: 4.4V-6V
  • Output voltage / current: 5V 500mA
  • Operating temperature: -40 ℃ -80 ℃
  • Weight：9g

In our application, especially in some outdoor applications, we often need to use the lithium battery, lithium battery charging problem is a need to solve the problem, we designed this mini lithium battery charging board.

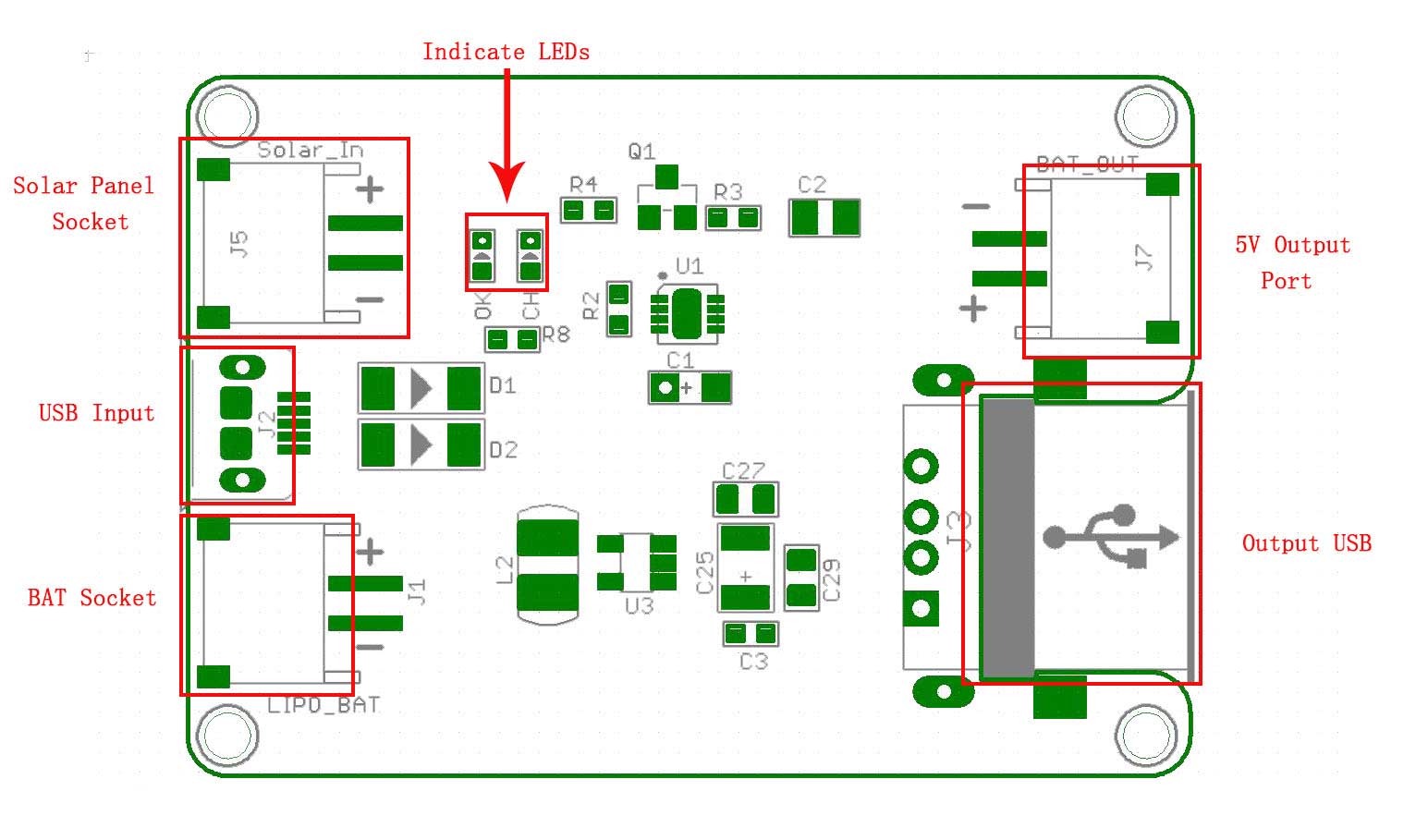

Board size is very small , It can use external power supply, such as solar or USB power supply. It uses CN3065 – a single lithium battery charge management chip, when an external power supply to the lithium battery, you can also use it to output a stable 5V.500mA current, and we added a Moss tube as a power switch, when there is an external power supply to the lithium battery, the output will be directly from the external power supply to provide, so you can reduce the loss of lithium batteries, lithium batteries will increase the service life.
When the external power supply is cut off, it will immediately switch to the lithium battery power supply, lithium battery through the ETA1036 to form a boost circuit, and then output 5V power supply, ETA1036 is a highly efficient synchronous boost chip with load cut and short circuit Protection function, so it can implement UPS function. It would be a good helper if we used UAVs or some other model toys outdoors or went to camping.

Features

  • Maximum 1A load output
  • Battery and Solar panel connector is JST 2.0
  • Stable 5V USB power supply regardless of source
  • Charge/Recharge algorithms built into chip
  • Charge Lithium Polymer Battery through solar power or USB
  • Stable supply voltage through either lithium battery or USB
  • USB ports let you program your kit while charging your Lithium battery
  • LED indications for battery full or charging states :One red alarm LED and one green status LED

Specifications

  • Input voltage: 4.4V-6V
  • Output voltage / current: 5V 500mA
  • Operating temperature: -40 ℃ -80 ℃
  • Weight：9g

Package list

  • Mini Solar/Lipo Charger Board x1

Wiki & External links
